S-series
The photovoltaic bracket is a bracket system used to install solar photovoltaic panels. Its main function is to provide support and fixation of photovoltaic panels to ensure that photovoltaic panels can be stably installed on the ground, roof or other appropriate positions.
Classification:
Auxiliary Brackets
Key words:
Product Description
Technical parameters

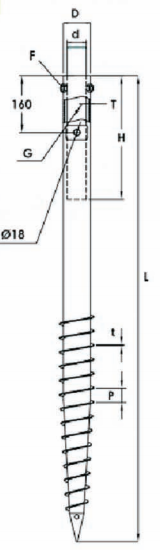

| Designs | Name Code | Illustration |
| Length (mm) | L |  |
| Outer diameter (mm) | D | |
| Shaft thickness (mm) | T | |
| Depth Settings | H | |
| Diameter setting | d | |
| Thread width | E | |
| Pitch | P | |
| Thread thickness | t | |
| Weld nut | F | |
| Self-tapping hole | G |
Standard Product List
| Product Number | Product Code | D(mm) | L(mm) | T(mm) | Weight (kg) |
| 1010001 | EG-48*600*3-S | 48 | 600 | 3 | 2.7 |
| 1010002 | EG-48*800*3-S | 48 | 800 | 3 | 3.5 |
| 1010003 | EG-60*600*3-S | 60 | 600 | 3 | 3.1 |
| 1010004 | EG-60*800*3-S | 60 | 800 | 3 | 4.1 |
| 1010005 | EG-60*1000*3-S | 60 | 1000 | 3 | 5.2 |
| 1010006 | EG-60*1400*3-S | 60 | 1400 | 3 | 6.7 |
| 1010007 | EG-76*1600*3-S | 76 | 1600 | 3 | 9.9 |
| 1010008 | EG-76*1800*3-S | 76 | 1800 | 3 | 11.1 |
| 1010009 | EG-76*2000*3-S | 76 | 2000 | 3 | 12.4 |
| 1010010 | EG-76*3000*3-S | 76 | 3000 | 3 | 18.2 |
| 1010011 | EG-76*4000*3-S | 76 | 4000 | 3 | 23.6 |
| 1010012 | EG-76*1600*4-S | 76 | 1600 | 4 | 12.5 |
| 1010013 | EG-76*1800*4-S | 76 | 1800 | 4 | 14.7 |
| 1010014 | EG-76*2000*4-S | 76 | 2000 | 4 | 16.1 |
| 1010015 | EG-76*3000*4-S | 76 | 3000 | 4 | 23.2 |
| 1010016 | EG-76*4000*4-S | 76 | 4000 | 4 | 30.1 |
| 1010017 | EG-89*1600*3-S | 89 | 1600 | 3 | 11.7 |
| 1010018 | EG-89*1800*3-S | 89 | 1800 | 3 | 13.2 |
| 1010019 | EG-89*2000*3-S | 89 | 2000 | 3 | 14.5 |
| 1010020 | EG-89*3000*3-S | 89 | 3000 | 3 | 21.2 |
| 1010021 | EG-89*4000*3-S | 89 | 4000 | 3 | 27.9 |
| 1010022 | EG-89*1600*4-S | 89 | 1600 | 4 | 14.9 |
| 1010023 | EG-89*1800*4-S | 89 | 1800 | 4 | 16.5 |
| 1010024 | EG-89*2000*4-S | 89 | 2000 | 4 | 18.2 |
| 1010025 | EG-89*3000*4-S | 89 | 3000 | 4 | 26.8 |
| 1010026 | EG-89*4000*4-S | 89 | 4000 | 4 | 35 |
The photovoltaic bracket is a bracket system used to install solar photovoltaic panels. Its main function is to provide support and fixation of photovoltaic panels to ensure that photovoltaic panels can be stably installed on the ground, roof or other appropriate positions. The length of the photovoltaic rack is usually determined according to the size and layout of the photovoltaic panel. In general, the length of the photovoltaic bracket should be able to adapt to the installation requirements of the photovoltaic panel to ensure that the photovoltaic panel can be completely laid on it.
